Unloading Auger Support Stud—Adjusting (Standard Grain Tank)

NOTE: Periodically check to be sure that auger fully slides into support stud when auger is fully retracted. Readjust as needed.

H73125
H73125-UN-09SEP02

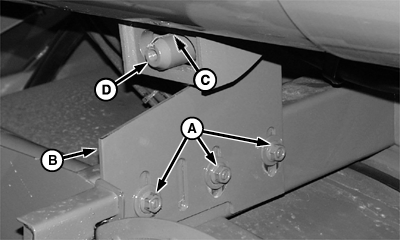

A - Hardware

B - Plate

C - Clearance

D - Stud

Loosen nuts (A) to adjust position of stud plate (B). Clearance (C) between top of stud (D) and slot, should be set to specification when auger is empty.

Item Measurement Specification

Top of Stud to Slot Clearance 0—3 mm (0—1/8 in.)

Adjust stud plate as needed and tighten nuts.
