Unloading Auger Swing Cylinder Eyebolt—Adjusting (Standard Grain Tank)

1. CAUTION: Shut OFF engine, set parking brake and remove key.

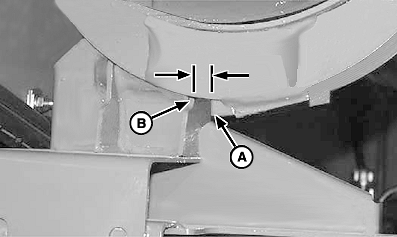

   H80948-UN-27MAY04

   A - Plate

   B - Stop

   With hydraulic cylinder fully retracted, check gap between plate (A) and stop (B). Gap should be set to specification.

   Item	Measurement	Specification
   Plate to Stop	Gap	12—16 mm (1/2—5/8 in)

---




2.

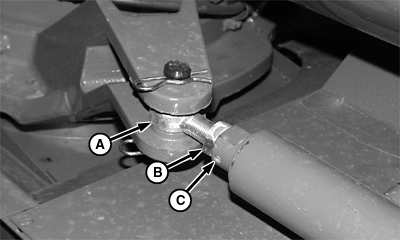

   H66021-UN-30JAN01

   A - Cylinder Rod End

   B - Jam Nut

   C - Set Screw

   If gap is incorrect, adjust cylinder rod end (A). Loosen jam nut (B) and set screw (C). Screw cylinder rod in or out to obtain correct gap.

---




3. Tighten jam nut and set screw.
