Unloading Auger Cradle Support—Adjusting (High Unload Rate Grain Tank)

1.

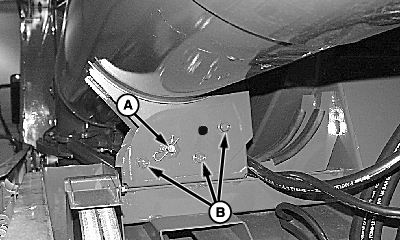

   H76213-UN-28APR03

   A - Pin

   B - Cap Screws

   Swing unloading auger to storage or transport position and keep pivoting cradle pinned (A).

---




2. Loosen but do not remove cap screws (B).

3.

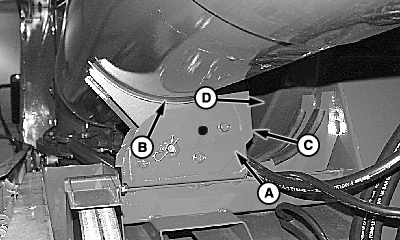

   H76214-UN-28APR03

   A - Cradle Support Bracket

   B - Rubber Bumper

   C - Back Edge of Cradle Support

   D - Grain Tank Frame

   Adjust cradle support bracket (A) up or down until rubber bumper (B) contacts lower surface of unloading auger.

---




4. Square back edge of cradle support (C) with tubular structure on grain tank frame (D).

5. Tighten cap screws.
