Unloading Auger Drive Belt—Replacing

CAUTION: Shut OFF engine, set parking brake and remove key.

H54696-UN-21MAY99

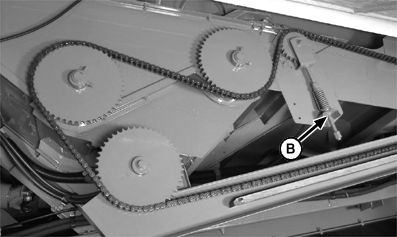

H54697-UN-21MAY99

Standard Grain Tank Tensioner

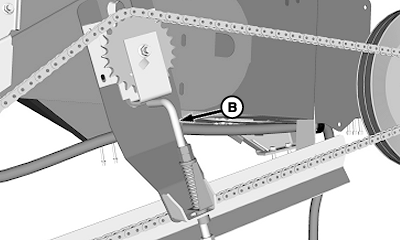

H87818-UN-05APR07

High Unload Rate Tensioner

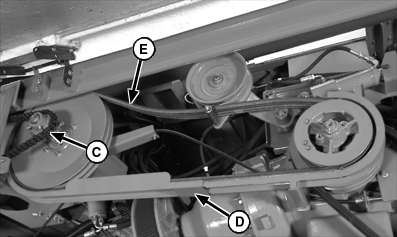

H54698-UN-21MAY99

A - Hydraulic Cylinder

B - Tensioner

C - Sprocket

D - Belt Trap

E - Belt

Loosen tensioner (B) on unloading auger drive chain.

Remove chain from driver sprocket (C) on countershaft.

Remove cap screws retaining belt trap (D).

Remove belt trap and belt (E).

Install replacement belt and replace belt trap previously removed.

Install drive chain and adjust idler until washer aligns with end of gauge.
