Alternator and Voltage Regulator
H82366-UN-03FEB05

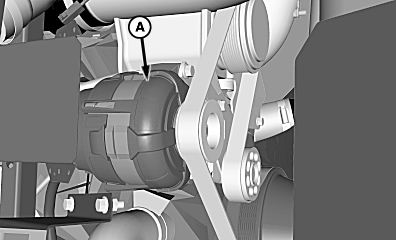

A - Alternator
Always disconnect battery ground cable before working on alternator (A) or regulator.Machine is equipped with a 200 amp alternator. Never attempt to polarize alternator or regulator.
Never ground a terminal or connect a jumper wire to any alternator terminals.
Never connect or disconnect alternator wires with batteries connected or alternator operating.
|
OUO6075,00007DE-19-20070716 |
