Cab Headlights—Replacing

CAUTION: Raise feeder house and lower safety stop before replacing or adjusting headlights.

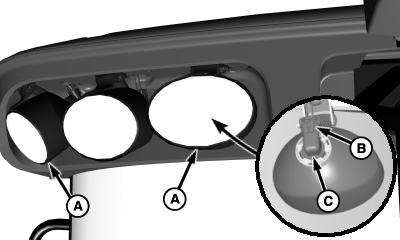

H83429-UN-10MAY05

A - Light Assemblies

B - Connector

C - Bulb Assembly

Disconnect wiring harness connector (B).

Turn bulb assembly (C) counterclockwise to remove.

Remove and replace bulb.

Install bulb in reverse order and connect wiring harness.
