Cab Headlights—Adjusting

CAUTION: Raise feeder house and lower safety stop before replacing or adjusting headlights.

NOTE: The vertical adjustment of the light assemblies can be rotated up or down in the three notch positions to achieve the correct lighting angles.

H83515
H83515-UN-19MAY05

A - Light Assemblies

B - Notches

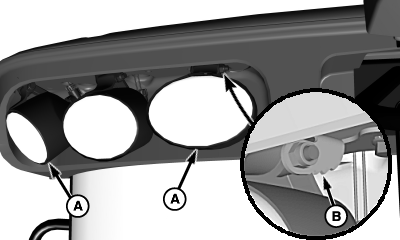

Vertical Adjustment: Light assemblies (A) can be rotated up or down in notches (B).

H83516
H83516-UN-19MAY05

A - Light Assemblies

B - Bracket

C - Indicator Line

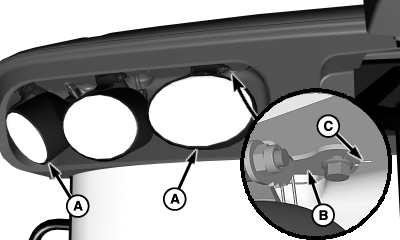

Horizontal Adjustment: To adjust light assemblies (A), loosen cap screws and rotate bracket (B) until notch aligns with indicator line (C).
