High Intensity Discharge (Xenon) Lights (Optional)—Replacing

CAUTION: Avoid serious injury or death from electrical shock or lamp explosion. This lamp is powered by 25,000 volts. Do no begin installation of HID-Xenon lights unless lights are turned OFF, engine is shut OFF, parking brake is set, key is removed and appropriate eye protection is worn.

If HID-Xenon lights were previously operated, wait a minimum of five minutes before servicing bulb.

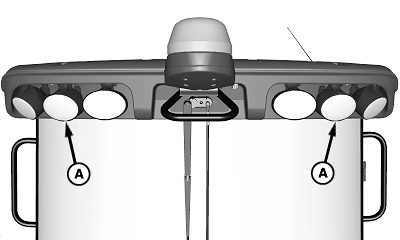

H82329
H82329-UN-01FEB05

A - HID-Xenon Lights

High intensity discharge (HID) xenon lights (A) are located in second and fifth cab light panel holes.

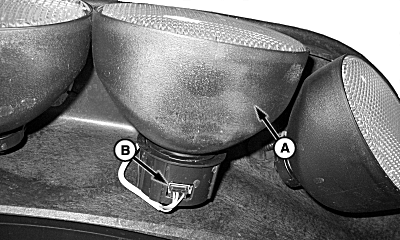

H89433
H89433-UN-01AUG07

A - Light Assembly

B - Wiring Harness

Rotate light assembly (A) upward and disconnect wiring harness (B).

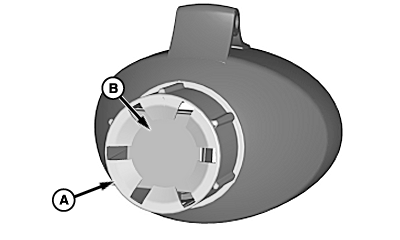

H83611
H83611-UN-26MAY05

Assembly Removed for Clarity

A - Retainer

B - Bulb Assembly

Push in and rotate retainer (A) counterclockwise.

Push in and rotate bulb assembly (B) counterclockwise.

Remove and replace bulb.

Install bulb and retainer in reverse order and connect wiring harness.

OUO6075,00007ED-19-20070801
