High Intensity Discharge (Xenon) Lights (Optional)—Adjusting
CAUTION: Raise feeder house and lower safety stop before replacing
or adjusting headlights.
NOTE: Vertical adjustment of High Intensity Discharge (HID) Xenon lights assemblies must be rotated to first notch to achieve correct light angle.

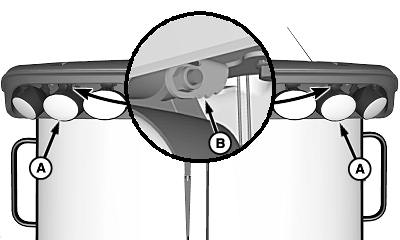

H83537-UN-20MAY05
A - Light Assemblies
B - First Notch
Vertical Adjustment: Rotate light assembly (A) to the first notch (B).

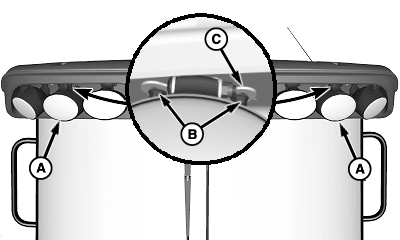

H83622-UN-27MAY05
A - Light Assemblies
B - Cap Screws
C - Light Bracket
Horizontal Adjustment: To adjust light assemblies (A), loosen cap screws (B) and rotate light bracket (C) towards center of cab and tighten cap screws.|
