Rear Discharge Lights, Auxiliary Field Lights, Access Door Work Lights, Stubble Lights, Grain Tank and Unloading Auger Light—Replacing

NOTE: (For important safety information regarding halogen bulbs, see Safety Rules When Replacing Halogen Bulbs in this section before performing this procedure.

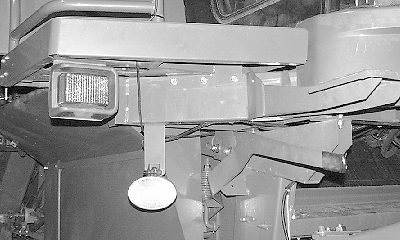

  1. H74801
    H74801-UN-15JAN03

    Right-Hand Stubble Light

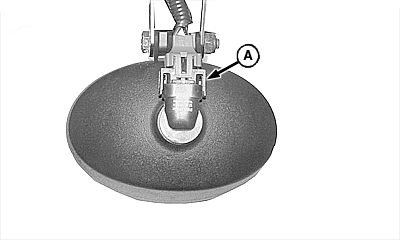

    H76294
    H76294-UN-05MAY03

    A - Connector

    B - Bulb Assembly

    Disconnect connector (A).


  2. Turn bulb assembly counterclockwise and remove.

  3. Install bulb assembly in reverse order.

OUO6075,00007F0-19-20070405
