Accumulator

NOTE: If different headers are to be used, accumulator precharge should be set for the header with the lowest recommended precharge. When changing headers during harvest season, there is usually no need to change accumulator precharge pressure. Performance of accumulator system covers a large range of headers for most conditions.

H78502
H78502-UN-11SEP03

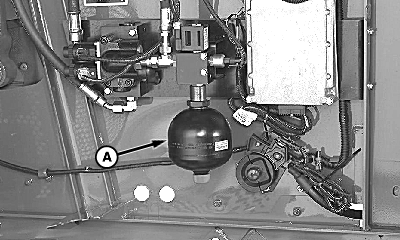

A - Accumulator

Accumulator (A) system is connected to the header lift system between the lift cylinders and solenoid control valve. The accumulator is used to control header ground pressure (float) when it is necessary to operate headers in contact with the ground.

Accumulator Volume: 0.7 L (0.19 U.S. gal).

Accumulator is maintenance-free and cannot be repaired if damaged.
