Gearshift Linkage—Adjusting
H57475-UN-11JUN99
H57476-UN-11JUN99
Shield Removed for Clarity
A - Lock Nut
B - Ball Joint
C - Measurement, 248 mm (9-3/4 in.)
D - Clamp
E - Shift Arm
F - Lock Nut
G - Ball Joint
H - Measurement, 237 mm (9-5/16 in.)
I - Clamp
If gearshift lever is hard to shift, it does not necessarily mean that the cable needs adjustment.Hard shifting can be caused by:
A damaged, dirty, rusty or pinched shift cable. For these problems, inspect, clean, adjust or replace cable.
Internal transmission problems. If you suspect a transmission problem, see your John Deere dealer.
To adjust linkage, shift transmission into second gear. Gearshift lever should be leaning slightly forward when in second gear.

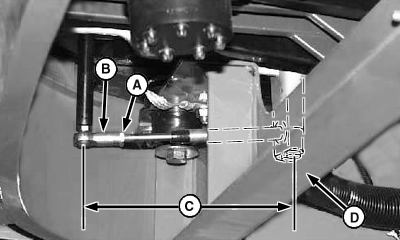

From under cab, loosen lock nut (A) and adjust ball joint (B) to meet specification.
| Item | Measurement | Specification |
| Ball Joint | Distance | 248 mm (9-3/4 in) |
Do not adjust clamp (D).

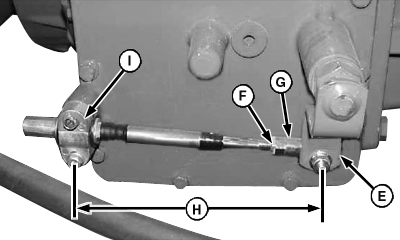

At transmission, shift arm (E) should be vertical as shown.
Loosen lock nut (F) and adjust ball joint (G) until stud on ball joint aligns with hole in shift arm (E).
Check for specification at location (H).
| Item | Measurement | Specification |
| Ball Joint | Distance | 237 mm (9-5/16 in) |
Do not adjust clamp (I).
|
