Engine Air Scoop

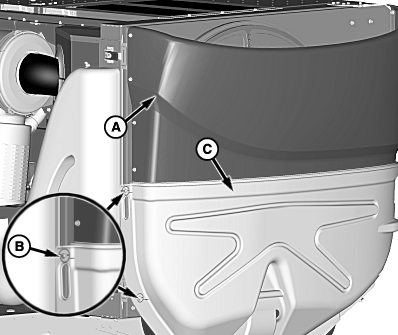

H86721
H86721-UN-19OCT06

A - Engine Air Scoop

B - Quick-Lock Pins

C - Lower Radiator Door

Check engine air scoop (A) as needed for crop debris or foreign material.

Remove quick-lock pins (B) and open lower radiator door (C) to cleanout debris or material.

OUO6075,0000876-19-20070315
