Chopper Drive Speeds—Changing

CAUTION: Shut OFF engine, set parking brake and remove key.

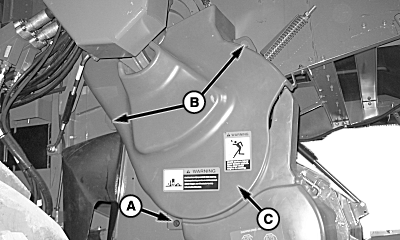

H86549
H86549-UN-08SEP06

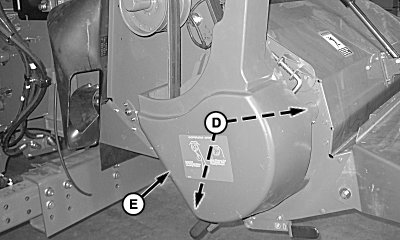

H86550
H86550-UN-08SEP06

A - Latch

B - Shield

C - Pins

D - Quick-Lock Pins

E - Shield

Release latch (A) and lift shield (B) over pins (C).

Remove quick-lock pins (D) from shield (E) and remove.

H69985
H69985-UN-13SEP01

A - Switch

Raise chopper assembly fully with switch (A) until lock-out pins snap into place.


For High Speed (2500 rpm):

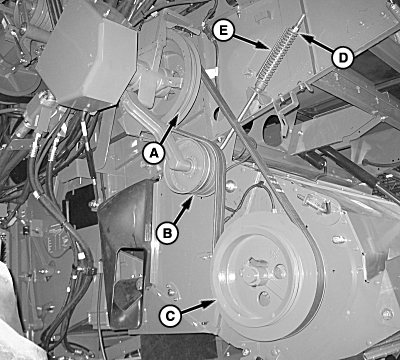

H86552
H86552-UN-08SEP06

A - Sheave

B - Idlers

C - Sheave

D - Washer

E - Gauge

Install belt on outside sheave grooves (A), idlers (B) and outside sheave grooves (C).

  • Grain

For Low Speed (1600 rpm):

Install belt on inside sheave grooves (A), idlers (B), and inside sheave grooves (C).

  • Corn

Pull lock-out pins rearward and rotate up until handles rest on bracket.

Lower chopper and verify belt aligns with sheaves.

Install chopper shields and verify washer (D) is positioned between end of gauge (E) and bottom of step. Adjust as required.

OUO6075,0000886-19-20070423
