Chopper to Windrow/Servicing Position

CAUTION: Shut OFF engine, set parking brake and remove key.

H69985
H69985-UN-13SEP01

A - Switch

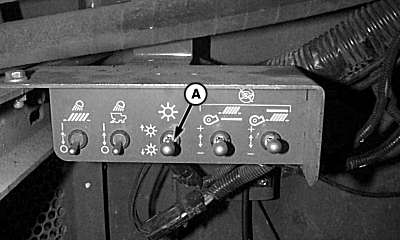

Raise chopper assembly fully with switch (A) until lock-out pins snap into place.

H87270
H87270-UN-22JAN07

A - Latch

B - Shield

C - Pins

D - Chopper Drive Belt

E - Belt Guard

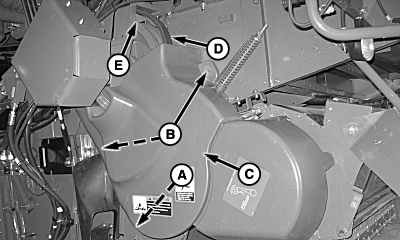

Release latch (A) and lift shield (B) over pins (C).

Move chopper drive belt (D) on top of belt guard (E), so belt does not turn while chopper is in windrow position.
