Fuse Center

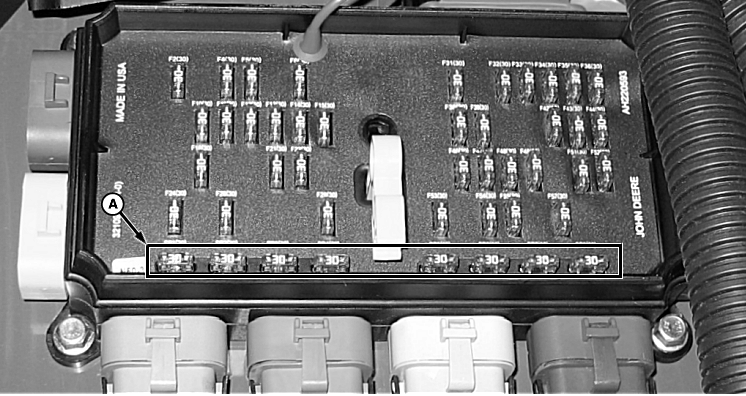

H87865-UN-17APR07

• A — Spare Fuses (30 Amp.)
• F1 — F11 Not Used
• F12 — Right Power Module Power 4
• F13 — F14 Not Used
• F15 — Control Unit (SSU) Unswitched Power (If Equipped)
• F18 — Cornerpost Display Unit (CDU), Control Unit (CAB), Air Seat Compressor, Radio, Mirror Adjust
• F21 — Cab Power Module 4, Control Unit (ADU)
• F22 — Right Power Module Power 5
• F24 — Control Unit (CAB) Power 2, Ignition Switch
• F26 — Auxiliary Power Outlet Strip, Windshield Wiper, Cigarette Lighter
• F29 — Control Unit (ECU) Power
• F31 — Left Power Module 1 Power 2
• F32 — Control Unit (VCM) Power (If Equipped)
• F33 — Left Power Module 1 Power 3
• F34 — Chopper Raise/Lower
• F35 — Control Unit (LC2) Power 1
• F36 — Left Power Module 1 Power 5
• F38 — Cab Power Module Power 1
• F39 — Control Unit (LC1) Power 1
• F42 — Left Power Module 2 Power 4 (If Equipped)
• F43 — Left Power Module 1 Power 1
• F44 — Control Unit (LC2) Power 2
• F46 — Right Power Module Power 3
• F47 — Moisture Meter Power (If Equipped)
• F48 — Left Power Module 1 Power 4
• F49 — Cab Power Module Power 2
• F51 — Cab Power Module Power 4, Dome Light
• F52 — Control Unit (LC1) Power 2
• F53 — Control Unit (RCU) Power 1
• F54 — Right Power Module Power 2
• F55 — Right Power Module Power 1
• F57 — Cab Power Module Power 3
