Cab Ladder Positions

H63874-UN-09MAY00

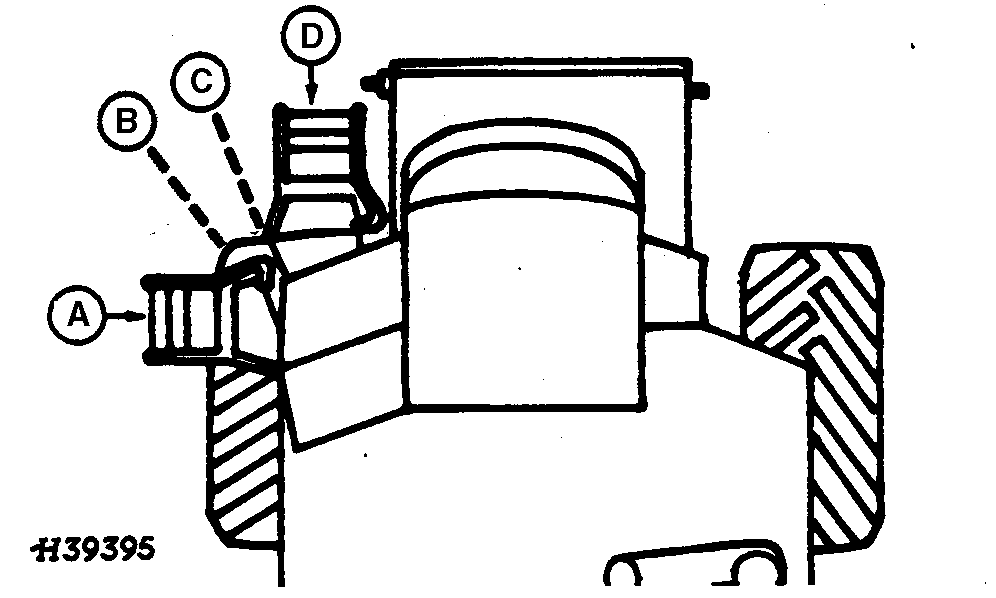

A - Field Position

B - Small Header, Ladder Extension or Duals Position

C - Roadway Driving Position for Long Ladder Extension

D - Roadway Driving Position

Pull down latch and swing ladder to position (B) for machines with a small header, a ladder extension or duals.

From cab landing, push down on latch and swing ladder to position (D) before driving on roadways.

CAUTION: Always swing ladder to position (D) before transporting on public roadways in order to reduce machine width and position amber warning lamp toward oncoming motorists.

IMPORTANT: Long ladder extension 1390 mm (55 in) is required on machines equipped with dual tires, axle spacers, etc. will interfere with the platform drive shaft when the ladder is swung to position (D). Raising or lowering feeder house could damage ladder, drive shaft or drive shaft shield. Place ladder in position (C) in this situation.
