Communications/CB Radio Mounting

IMPORTANT: Do not install a radio requiring more than 3 amps or electrical system may malfunction.

H64104
H64104-UN-01JUN00

H65641
H65641-UN-20DEC00

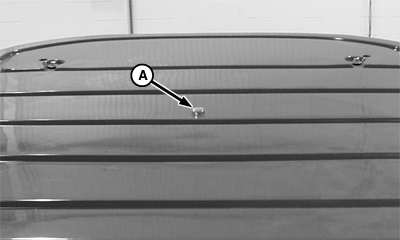

A - Antenna Mount

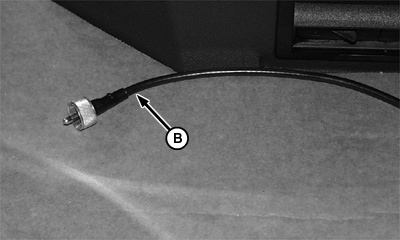

B - Antenna Cable

To install additional radio or CB radio, see your John Deere dealer.

Antenna mount (A) is located in center of cab roof. Antenna cable (B) is located on right-hand side of cab under the armrest console.

H86756
H86756-UN-30OCT06

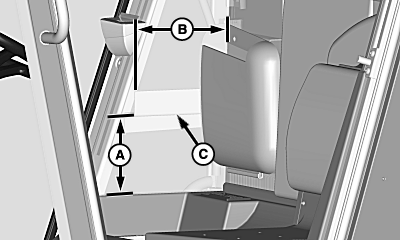

A - Dimension, 185 mm (7.25 in.)

B - Dimension, 225 mm (9 in.)

C - Bracket, 50 mm (2 in.)

Use provided dimensions (A) and (B) to locate bracket (C) behind interior panel.

Using bracket (supplied by radio manufacture) as a template, drill holes as required through foam and plate on right-hand rear inside cab. Use self tapping screws to mount bracket.

H87079
H87079-UN-13DEC06

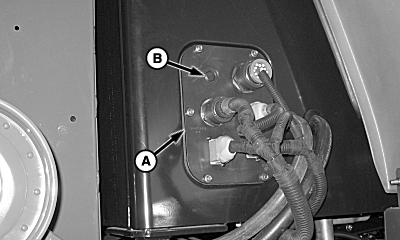

A - Cab Wall Plate

B - Plug

Remove right-hand cab wall plate (A) and plug (B). Obtain rubber grommet from John Deere dealer and cut grommet so antenna cable can be routed through grommet and cab wall plate.

NOTE: Do not leave grommet out or mice can enter cab area through this hole.
