Washing Cab Windows, Servicing Headlights and Wiper

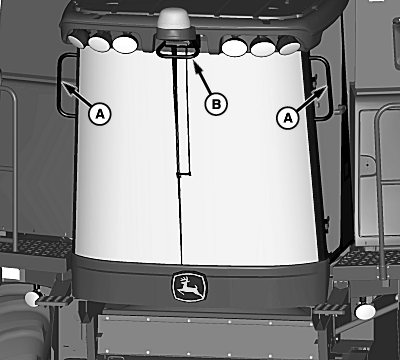

H86757-UN-30OCT06

A - Handrails

B - Handhold

CAUTION: Raise feeder house completely and lower safety stop on feeder house lift cylinder. Close cab door securely and use hand holds.

IMPORTANT: Do not manually move wiper arm, this could cause damage to the wiper mechanism.

Stand on raised feeder house with feeder house safety stop lowered to clean front cab window and service head lights or wiper.

For stability, use handrails (A) on either side of cab and handhold (B) at top of cab.

Access feeder house by using step on left-hand side.

Use step and landing to clean right side of cab.
