Discharge Beater Belt—Replacing
CAUTION: Shut OFF engine, set parking brake and remove key.
H86546-UN-08SEP06

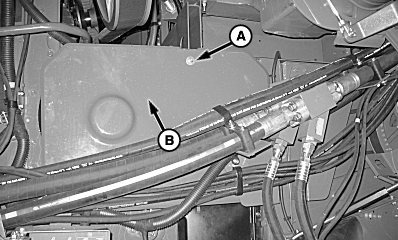

A - Cap Screw
B - Shield
Remove cap screw (A) and remove shield (B) from left-hand rear of machine.
H86548-UN-08SEP06

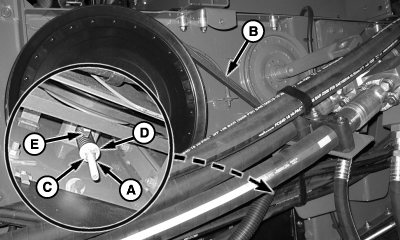

A - Lock Nut
B - Belt
C - Nut
D - Washer
E - Gauge
Loosen lock nut (A) and remove belt (B).Install replacement belt and tighten nut (C) until washer (D) is positioned between end of gauge (E) and bottom of step.
Tighten lock nut and install shield.
|
