Feeder House Doors

CAUTION: Shut OFF engine, set parking brake and remove key.

H76150
H76150-UN-24APR03

H76151
H76151-UN-24APR03

A - Nuts

B - Door

C - Doors

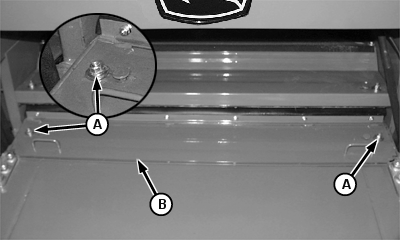

Loosen nuts (A) on each side of the door and push nuts towards center of feeder house.

Pull door (B) forward to remove.

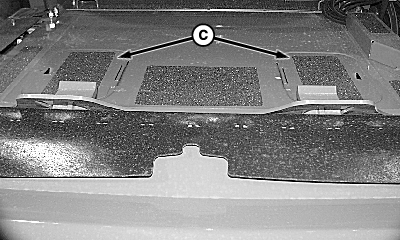

Lift doors (C) to access inside of feeder house.

OUO6075,00008A0-19-20070320
