Feed Accelerator Top Access Door

CAUTION: Shut OFF engine, set parking brake and remove key.

H70566
H70566-UN-03JAN02

H70565
H70565-UN-03JAN02

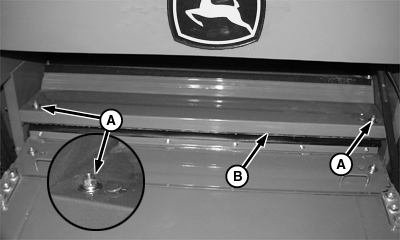

A - Locking Nuts

B - Door

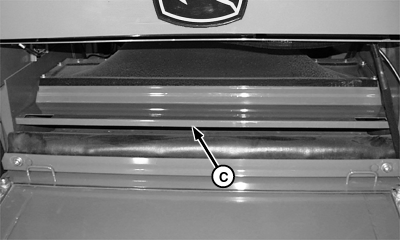

C - Door

Loosen locking nuts (A) on each side of the door and push locking nuts towards center of machine.

Pull door (B) forward to remove.

Slide door (C) forward to remove.

OUO6075,00008A1-19-20070320
