Feeder House Top Shaft Stripper—Adjusting
CAUTION: Shut OFF engine, set parking brake and remove key.

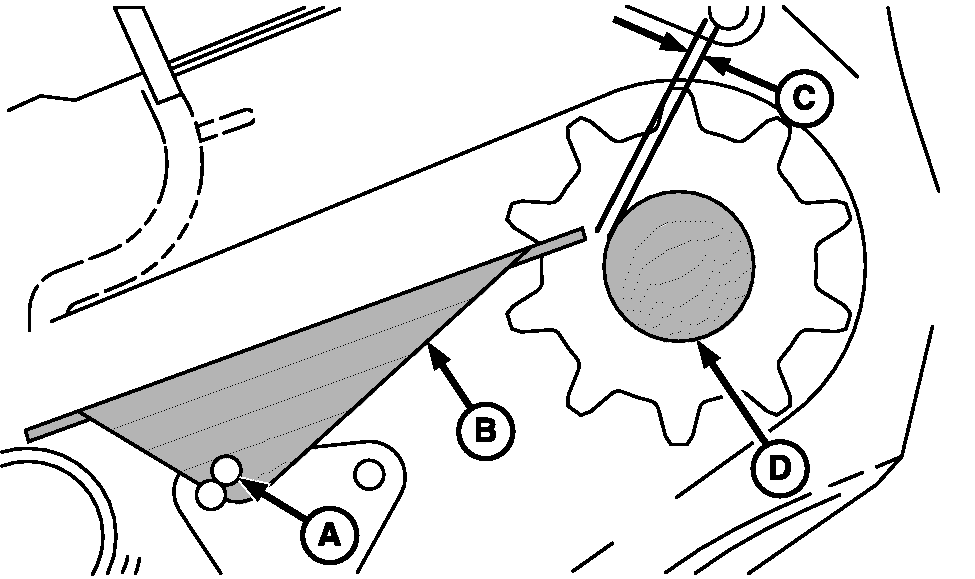

H59570-UN-18AUG99
A - Bolts
B - Stripper
C - Dimension 3 mm (1/8 in.)
D - Top Shaft
If top feeder house shaft should wrap, check to see that the strippers are adjusted as follows:Remove top feeder house door.
Loosen bolts (A) and set stripper (B) to 3 mm (1/8 in.) (C) from top shaft (D).
| Item | Measurement | Specification |
| Stripper Location | Distance | 3 mm (1/8 in.) |
Tighten bolts (A) and install top feeder house door.
|
OUO6075,00008B3-19-20070809 |
