Feeder House Top Shaft Sprockets

H39620
H39620-UN-11OCT88

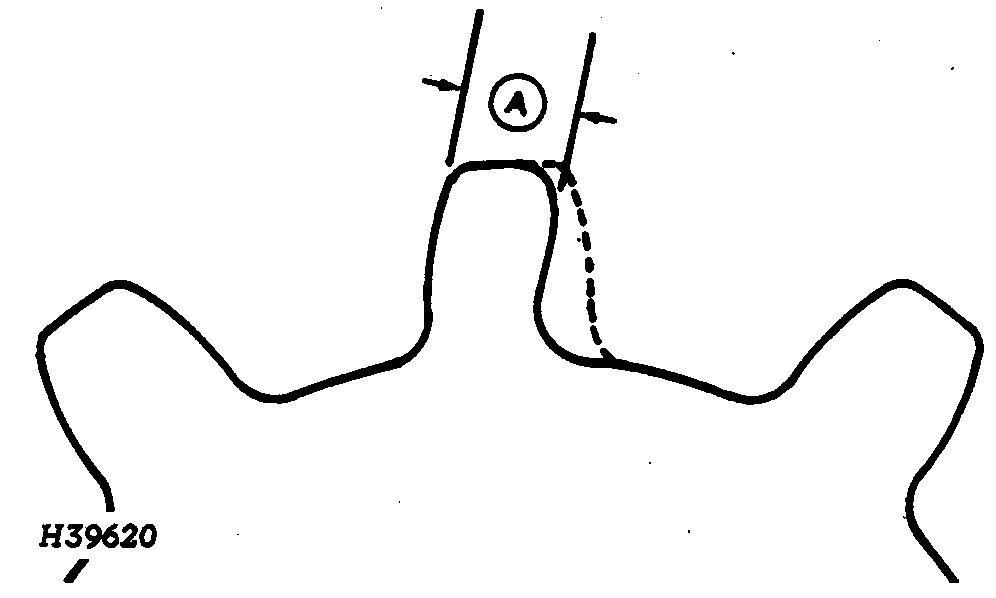

A - Dimension 12 mm (1/2 in.)

After 1000 hours, depending on the crops being harvested, check the upper shaft sprockets for wear.

If these sprockets are worn past 12 mm (1/2 in.) (A), sprockets can be reversed for additional wear.

OUO6075,00008B4-19-20070320
