Manual Tilt Indicator (Contour-Master)

H62284A
H62284A-UN-24JAN00

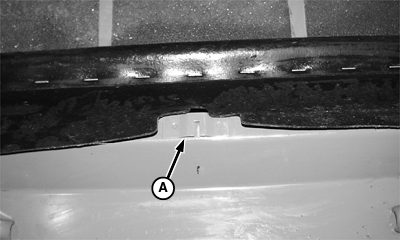

A - Notch

For a quick visual indication of whether header is level with machine chassis, Contour-Master is equipped with a manual tilt indicator.

When notch (A) is in center of rubber seal, the header is approximately level with the machine body. Indicator may also be useful as a reference during operation.
