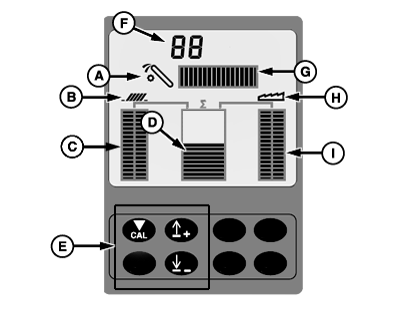

VisionTrak Display

H86980
H86980-UN-13DEC06

A - Tailings Symbol

B - Shoe Symbol

C - Shoe Loss Indicator

D - Total Loss Indicator

E - Control Buttons

F - Calibration Reference Number

G - Tailings Volume Indicator

H - Separator Symbol

I - Separator Loss Indicator

VisionTrak allows the operator to do desired calibrations and setups for grain loss monitoring. Display shows grain loss levels in total loss as well as cleaning shoe and separator loss individually. Display also shows tailings volume and adjustable deck plate position (if equipped with this option).

Tailings Symbol (A): displays when system is functioning correctly.

Shoe Symbol (B): displays when system is functioning correctly.

Shoe Loss Display (C): shows grain loss from shoe.

Total Loss Display (D): shows grain loss from shoe and separator area.

Control Buttons (E): allows operator to calibrate or adjust VisionTrak settings.

  • Calibration Button: is used to calibrate the grain loss total based on current loss levels for each sensor.
  • Up Arrow/Down Arrow Buttons: allows an operator to adjust VisionTrak calibration values. Pressing up/down arrow buttons will manually change calibration values.

Calibration Reference Number (F): shows current grain loss monitoring calibration values.

Tailings Volume Display (G): shows volume of tailings return.

Separator Symbol (H): displays when system is functioning correctly.

Separator Loss Display (I): shows grain loss from separator area.
