CommandCenter Display

H87480
H87480-UN-23APR07

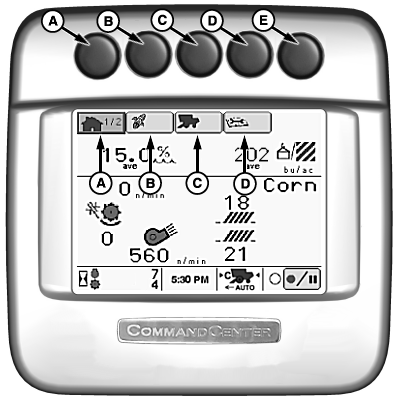

Press button (A, B, C or D) to select desired type of information to view or change. Corresponding icon on display will highlight and show number of available pages within that selection.

Once information type is selected, press button again to advance through available pages.

Details on each of these pages are given later in this section.

Display Navigation

Button

PAGE 1

PAGE 2

PAGE 3

PAGE 4

PAGE 5

(A) Home

View Harvest Monitor information, crop and machine settings

Viewable machine settings (six reconfigure windows)



(B) Harvesting Information

View Yield and moisture, select and change cut width

View and zero values of fuel use, area/distance, weight and moisture

View and change field totals1

View and change crop totals1



(C) Combine Setup

Change current machine settings

Select crop, grain seed size, farm and field

Select/Change current header settings

View header hours

Select/Change moisture alarm min/max, moisture correction and yield units2

Change Harvest Smart (max harvest speed, target engine speed, response rate, target pressure)3

(D) Diagnostics and Calibration

Active Alarms

Calibrations



(E)

Not currently used.

H86932
H86932-UN-20NOV06

A - Selection Dial

B - Indicator Light

C - Confirm Switch

D - Main Menu Switch

E - Display Select Switch

F - Cancel Switch

Once desired CommandCenter display page is selected, the display is navigated using the following dial and switches on the armrest:

  • Selection Dial (A): Rotate dial to:
    1. Scroll through available items on selected page
    2. Increase or decrease values in a selected item
  • Indicator Light (B): indicates that a switch was selected and now can be adjusted to operator desired position or setting.

  • Confirm Switch (C): Once an available item is highlighted on display using selection dial, press switch to:
    1. Select that item
    2. Toggle between available selections within that item
    3. Enter/save a value
  • Main Menu Switch (D): Press switch to change active application that display is running. Items or applications in menu include:
    • Combine
    • On Board Diagnostics Tool (OBDT)
    • Display Settings
  • NOTE: Display select switch must be activated to navigate between CommandCenter and GreenStar display (if equipped), see your John Deere dealer for further information.
    Display Select Switch (E): Press switch to toggle selection dial control between CommandCenter display or GreenStar display (if equipped).

  • Cancel Switch (F): Press switch to cancel a current selection.

1 Information will appear on GreenStar display (if equipped) instead of on CommandCenter.
2 Page appears if equipped with moisture sensor.
3 Page appears if equipped with Harvest Smart Feed Rate.

OUO6075,00009BF-19-20080317
