Manual Recording ON/OFF

H86296-UN-23APR07

H86933-UN-20NOV06

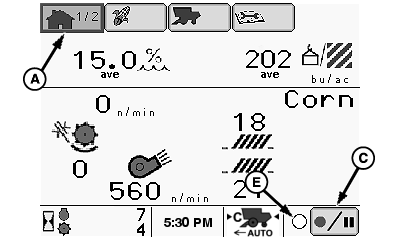

A - Home Page Icon

B - Selection Dial

C - Recording ON/OFF Icon

D - Confirm Switch

E - ON/OFF Indicator

To start recording data, all the following must occur or be turned ON manually:

• Separator engaged
• Header engaged
• Engine at high idle
• Header lowered to recording position
• Farm and Field must be named

To stop recording, one of the following must occur:

• Header raised past record stop height setpoint
• Header disengaged
• Recording is manually turned OFF

Recording can be manually stopped and restarted without raising header or disengaging separator (example, when approaching areas such as headlands, end rows already harvested, waterways, etc., for which recording data is not desired).

From home page icon (A), rotate selection dial (B) until recording ON/OFF icon (C) is highlighted.

Press confirm switch (D). Recording ON/OFF indicator (E) will toggle between an open and filled circle.

• Open circle - Recording OFF
• Filled flashing circle - Recording ON

Press confirm switch again to turn recording ON to manually resume recording data. Push header lower button on multifunction control handle (slight touch of header lower button will start recording data).
