Reconfigure Detail Machine Settings Page

NOTE: Shows detailed machine settings, allowing operator to reconfigure page and providing the ability to monitor six items at once. Items in list will vary depending upon machine configuration.

H86299
H86299-UN-10JAN07

H86933
H86933-UN-20NOV06

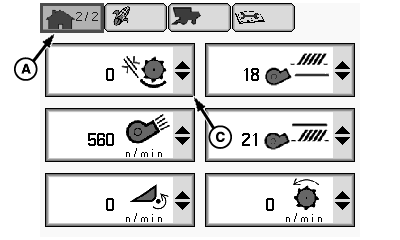

A - Home Page Icon

B - Selection Dial

C - Reconfigured Machine Setting Menu

D - Confirm Switch

From home page icon (A), rotate selection dial (B) until a reconfigured machine setting menu (C) is highlighted.

Press confirm switch (D). Reconfigured machine setting menu will appear with the following:

  • Moisture
  • Yield
  • Distance Counter
  • Area Counter
  • Cleaning Fan Speed
  • Threshing Speed
  • Threshing Clearance
  • Chaffer Clearance
  • Sieve Clearance
  • Backshaft Speed
  • CommandTouch Multi-Speed Feeder House Gear (If Equipped)
  • Engine Speed
  • Deck Plate Spacing
  • Reel Speed
  • Draper Speed
  • Spreader Speeds

H86300
H86300-UN-10JAN07

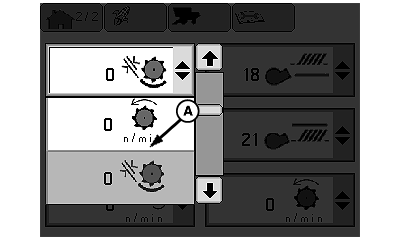

A - Machine Setting

Rotate selection dial until desired machine setting (A) is highlighted and press confirm switch.

Repeat procedure on remaining menus as desired.
