Clear Crop Totals/Print Crop Totals

NOTE: The following will appear on GreenStar display (if equipped) instead of on CommandCenter.

If machine is not equipped with moisture sensor, only the following Field Totals information will appear:

  • Area
  • Harvest Time
  • Productivity

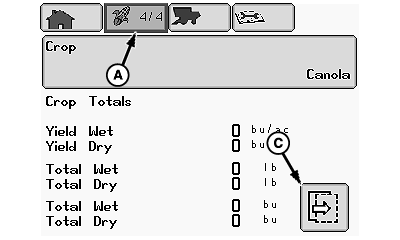

H86345
H86345-UN-10JAN07

H86933
H86933-UN-20NOV06

A - Harvesting Information Icon

B - Selection Dial

C - Next Page Icon

D - Confirm Switch

From harvesting information icon (A), rotate selection dial (B) until next page icon (C) is highlighted.

Press confirm switch (D) to advance to next page.

H86936
H86936-UN-20NOV06

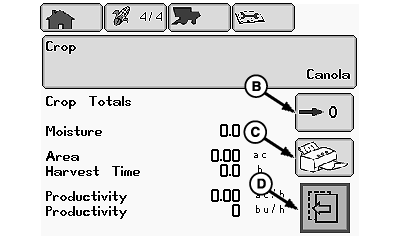

H86346
H86346-UN-10JAN07

A - Selection Dial

B - Crop Totals Reset Box

C - Printer Icon (Export Only)

D - Previous Page Icon

E - Confirm Switch

Rotate selection dial (A) until one of the following icons is highlighted:

  • Crop Totals Reset Box (B) - deletes crop totals for the selected crop.
  • NOTE: On export machines a printer can be integrated in the overhead display that allows farm, field and crop totals to be printed.
    Printer Icon (C) - allows operator to print data shown on screen.
  • Previous Page Icon (D) - allows operator to view previous page.

Press confirm switch (E) once desired icon is highlighted.

OUO6075,00009C6-19-20070713
