Backlight Level Control and Boundary Box Color

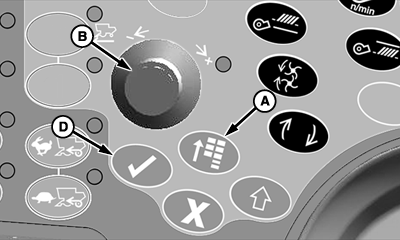

H86938
H86938-UN-20NOV06

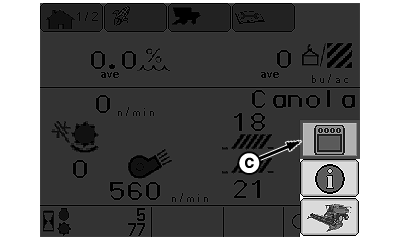

H86231
H86231-UN-10JAN07

A - Main Menu Switch

B - Selection Dial

C - Display Settings Icon

D - Confirm Switch

Backlight Setting: controls brightness of screen.

Press main menu switch (A) and rotate selection dial (B) until display settings icon (C) is highlighted.

Press confirm switch (D).

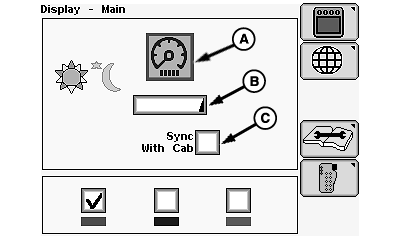

H86232
H86232-UN-07MAR07

A - Panel Dim Icon

B - Adjusting Indicator

C - Synchronize With Cab Box

Rotate selection dial until panel dim icon (A) is highlighted and press confirm switch.

Panel Dim quickly darkens display screen with one button push. When selected, panel dim feature temporarily darkens display screen in order to reduce glare. Screen resumes normal brightness when an alarm condition exists or activates any button on display control.

Rotate selection dial until adjusting indicator (B) is highlighted and press confirm switch.

Rotate selection dial to select brightness level of display.

  • Clockwise brightens screen.
  • Counterclockwise will darken screen.

Synchronize with Cab synchronizes CommandCenter display with dimmer switch in cab overhead when lights are ON.

Rotate selection dial until synchronize with cab box (C) is highlighted and press confirm switch.

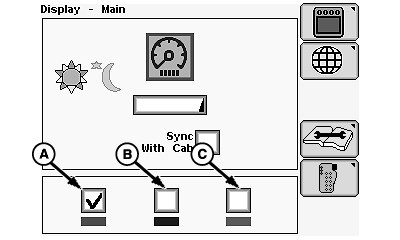

H87036
H87036-UN-07MAR07

A - Red Highlight

B - Blue Highlight

C - Green Highlight

Boundary Box Color Setting: allows operator to choose color of boundary box.

NOTE: Color defaults to red at initial power-up of display.

Rotate selection dial to select color of boundary box:

  • Red (A)
  • Blue (B)
  • Green (C)

Press confirm switch to check desired color.

H86938
H86938-UN-20NOV06

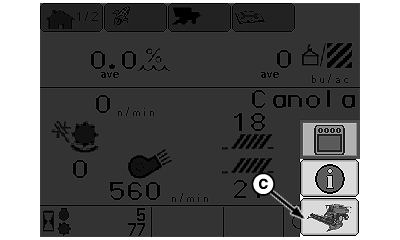

H86236
H86236-UN-10JAN07

A - Main Menu Switch

B - Selection Dial

C - Combine Main Page Icon

D - Confirm Switch

Press main menu switch (A) and rotate selection dial (B) until combine main page icon (C) is highlighted.

Press confirm switch (D) to return to home page.

OUO6075,00009C7-19-20070330
