VisionTrak Performance Monitor— Operating

H87576-UN-07MAR07

H86933-UN-20NOV06

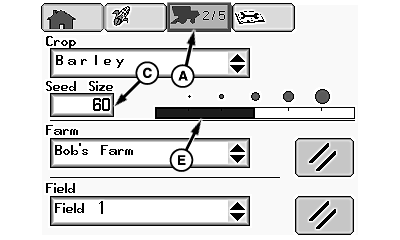

A - Setup Pages Icon

B - Selection Dial

C - Seed Size

D - Confirm Switch

E - Bar Graph

• Engine is running.
• Road transport disconnect switch must be in field position.
• Header and separator are engaged.

From setup pages icon (A), rotate selection dial (B) until seed size (C) is highlighted.

Press confirm switch (D) and rotate selection dial until desired seed size is shown on bar graph (E) (see following table for seed size numbers).

NOTE: Setting seed size sensitivity will increase or decrease sensitivity of grain loss sensors.

Small Seed (Default 38)	Medium Seed (Default 50)	Large Seed (Default 70)
Alfalfa	Barley	Chickpeas
Canola	Lentils	Corn
Flax	Popcorn	Edible Beans
Grass Seeds	Safflower	Lupins
Millet	Sorghum	Navy Beans
Mustard	Wheat	Peas
Oats		Soybeans
Rice		Sunflowers
Rye

Set the following on CommandCenter display:

• Crop
• Grain Loss Sensitivity (Seed Size)

1.
   H86008-UN-13DEC06

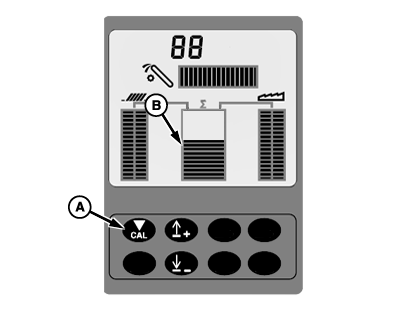

   A - Calibration Button

   B - Total Loss

   Set desired number for closest grain size.

---




2. Adjust machine and header to acceptable loss levels for particular crop and condition.

   NOTE: Ignore center bar graph on display at this time.

3. Operate machine at acceptable loss level.

4. Press calibration button (A) to center total loss (B). Bar graph indicates machine is operating at total loss levels acceptable by operator in step 3.

   NOTE: Bar graph is now a visual guide. Operator can refer to display periodically to know when an increase or decrease in total loss amount occurs. More detailed monitoring can be obtained by monitoring loss levels of the cleaning shoe and separator.

5.
   H87033-UN-30NOV06

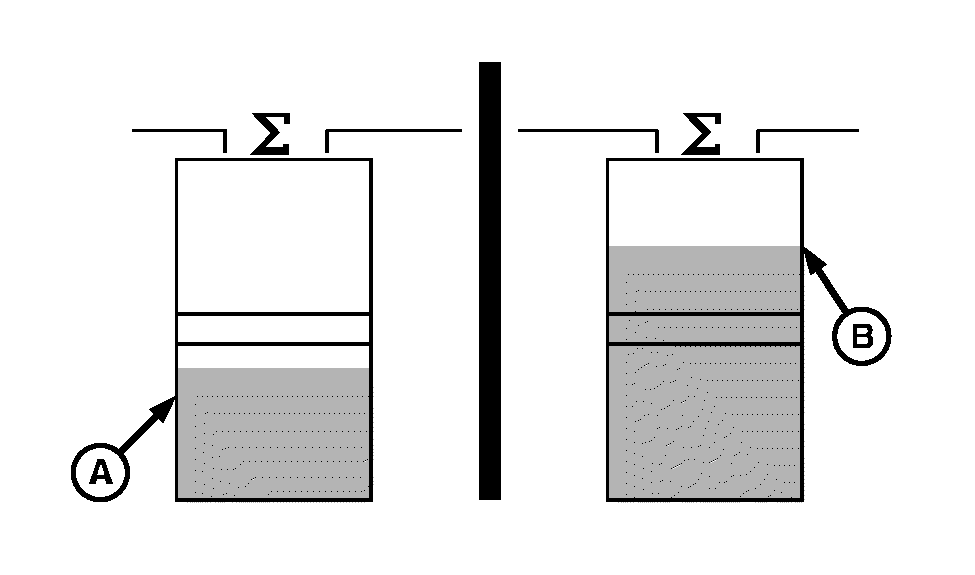

   A - Downward

   B - Upward

   If bar graph moves downward (A), machine is not operating at maximum productivity. Machine is either incorrectly adjusted for acceptable loss levels or moving at too slow of a ground speed. Make adjustments as needed to bring bar graph back into middle of display area.

---




6. If bar graph moves upward (B), machine is either incorrectly adjusted for an acceptable loss level or is moving too fast a ground speed. Make adjustments as needed to bring bar graph back into middle of display area.

7. When crop conditions change during the day (straw moisture, dew, etc.), make occasional loss checks to determine if readjustment is necessary.

   NOTE: When machine encounters a “slug”, middle bar graph will fluctuate upward (15 to 20 seconds) and return to previous reading. Ignore these fluctuations when this occurs.
