Accessing Diagnostic Trouble Code Menu

H86938
H86938-UN-20NOV06

H86257
H86257-UN-10JAN07

A - Main Menu Switch

B - Selection Dial

C - Message Center Icon

D - Confirm Switch

Press main menu switch (A) and rotate selection dial (B) until message center icon (C) is highlighted.

Press confirm switch (D).

H86265
H86265-UN-10JAN07

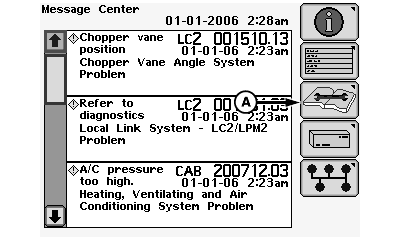

A - Trouble Codes Icon

Rotate selection dial until trouble codes icon (A) is highlighted and press confirm switch.

NOTE:

H86262
H86262-UN-10JAN07

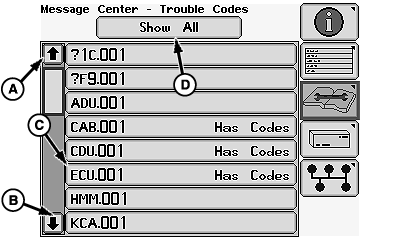

A - Up Arrow

B - Down Arrow

C - Controller

D - Show All Menu

Another way to display diagnostic trouble codes is with show all menu (D). Rotate selection dial until show all menu is highlighted and press confirm switch. This displays all trouble codes for all controllers.

Rotate selection dial until up arrow (A) or down arrow (B) is highlighted and press confirm switch to scroll through controller list.

Rotate selection dial until desired controller (C) is highlighted and press confirm switch.

H86263
H86263-UN-10JAN07

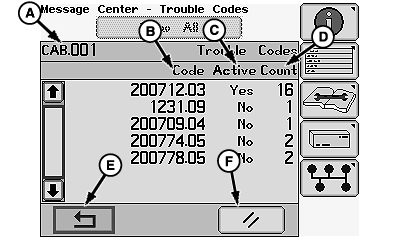

Individual Controller Trouble Codes

H86264
H86264-UN-28FEB07

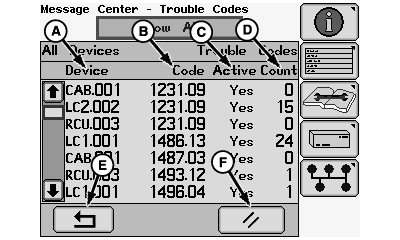

All Controller Trouble Codes

A - Controller/Device

B - Trouble Code

C - Active (Yes/No)

D - Count

E - Return/Back Arrow Icon

F - Clear Icon

NOTE: It may be necessary to rotate selection dial to scroll through trouble codes if multiple codes are displayed.

Screen will display the following:

  • Controller (A)
  • Trouble Code (B)
  • Active (Yes/No) (C)
  • Count (D)

Rotate selection dial until return/back icon (E) is highlighted to return to previous screen or until clear icon (F) is highlighted and press confirm switch.

H86938
H86938-UN-20NOV06

H86236
H86236-UN-10JAN07

A - Main Menu Switch

B - Selection Dial

C - Combine Main Page Icon

D - Confirm Switch

Press main menu switch (A) and rotate selection dial (B) until combine main page icon (C) is highlighted.

Press confirm switch (D) to return to home page.
