Deck Plate Position — Adjusting (Optional)

NOTE: To calibrate adjustable deck plates, see Calibration Procedures section.

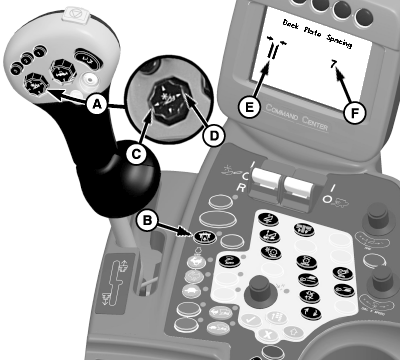

H87048
H87048-UN-25JUL07

A - Reel Fore/Aft Switch

B - Road Transport Disconnect Switch

C - Reel Fore Switch

D - Reel Aft Switch

E - Deck Plate Position Icon

F - Deck Plate Opening

Reel fore/aft switch (A) on multifunction control handle allows operator to open and close adjustable deck plates.

System is active when:

  • Engine is running.
  • Road transport disconnect switch (B) is in field position.

Press reel fore switch (C) to open deck plates and press reel aft switch (D) to close deck plates.

Deck plate position icon (E) and deck plate opening (F) will appear on display. Deck plates have a range of 0 (minimum position) to 9 (maximum position).

OUO6075,0000A2D-19-20070710
