Engine Compartment Service Lights (Optional)

NOTE:

H83426
H83426-UN-10MAY05

H83565
H83565-UN-23MAY05

H83566
H83566-UN-23MAY05

H83567
H83567-UN-23MAY05

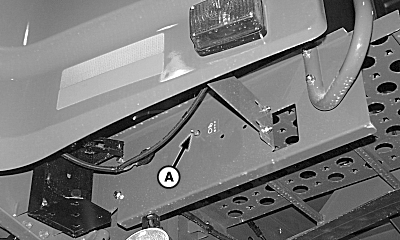

A - Engine Compartment Service Lights ON/OFF Switch

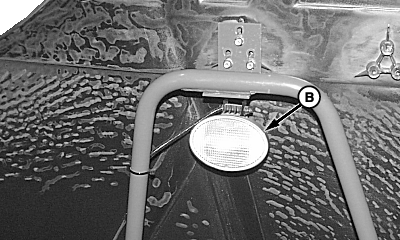

B - Engine Compartment Door Light

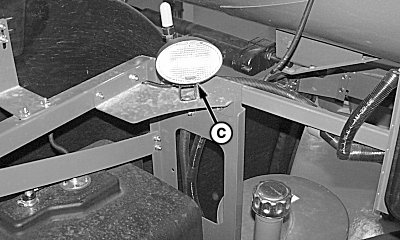

C - Engine Compartment Rear Light

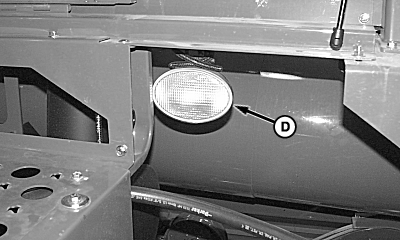

D - Engine Compartment Front Light

For lighting delay feature, see Lighting Delay/Timeout in this section for further information.

Engine compartment service lights provide additional lighting for the engine area.

Engine compartment service lights ON/OFF switch (A) is located on right-hand rear side of machine.

Switch controls engine compartment door light (B), and engine compartment rear light (C) and engine compartment front light (D).
