Choose Existing Farm/Field or Name New Farm/Field

H87299
H87299-UN-26JAN07

H87353
H87353-UN-05FEB07

New Farm/Field Menu

H86933
H86933-UN-20NOV06

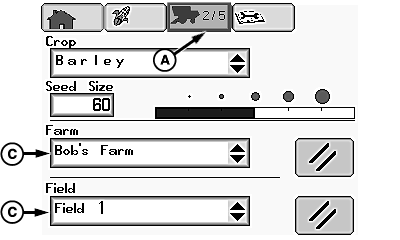

A - Setup Pages Icon

B - Selection Dial

C - Farm or Field Menu

D - Confirm Switch

From setup pages icon (A), rotate selection dial (B) until farm or field menu (C) is highlighted.

Press confirm switch (D) for farm or field listings.

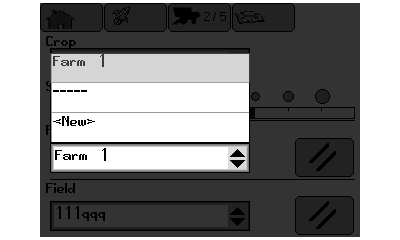

Rotate selection dial to choose an existing farm or field, or select “New” to enter a new farm or field.

Once desired selection is highlighted, press confirm switch.

NOTE:

H87396
H87396-UN-13FEB07

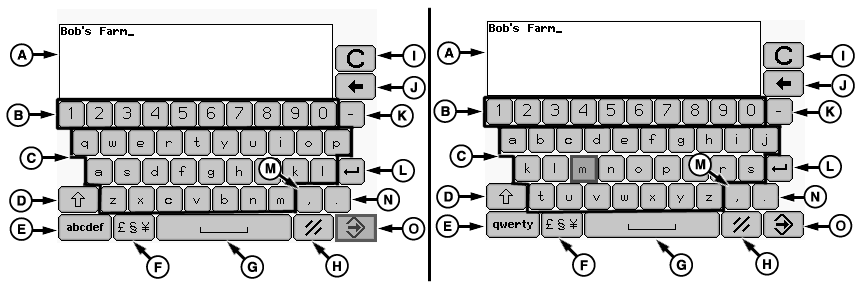

QWERTY Keyboard Layout / ABC Keyboard Layout

H87338
H87338-UN-19FEB07

Symbols Keyboard Layout

A - Farm/Field Naming Display

B - Numeric Keys

C - Alpha Keys

D - Caps Lock/Shift Key

E - QWERTY (Standard Typewriter Keyboard Layout) or ABC Key

F - Symbols Key

G - Space Key

H - Cancel Key

I - Clear All Key

J - Backspace Key

K - Hyphen Key

L - Enter/Return Key

M - Comma Key

N - Period Key

O - Enter/Accept Key

QWERTY and ABC keyboard operate the same, depending on which keyboard is selected for operation.

If “New” is selected, alpha numeric screen appears and allows you to name a farm or field.

H87354
H87354-UN-05FEB07

H87470
H87470-UN-20FEB07

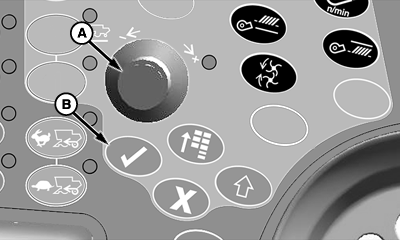

A - Selection Dial

B - Confirm Switch

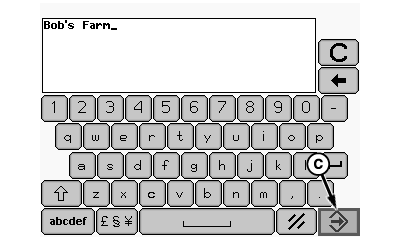

C - Enter/Accept Key

Rotate selection dial (A) until desired key is highlighted and press confirm switch (B).

Repeat procedure as needed to name farm or field.

Once farm or field is named, rotate selection dial until enter/accept key (C) is highlighted and press confirm switch.

OUO6075,0000A3F-19-20080625
