Change Header Settings

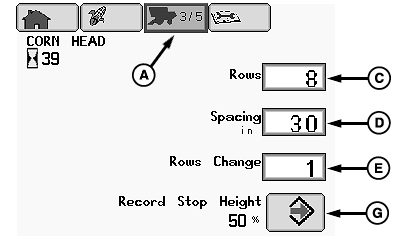

Corn Head Settings

H87094-UN-10JAN07

H87092-UN-15DEC06

A - Setup Pages Icon

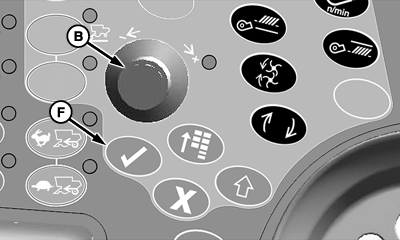

B - Selection Dial

C - Rows Box

D - Spacing Box

E - Rows Change Box

F - Confirm Switch

G - Record Stop Height Enter Icon

• Rows Box (C) - allows operator to set number of rows on corn head.
• Spacing Box (D) - allows operator to set row spacing on corn head.
• Rows Change Box (E) - allows operator to set row changes (not harvesting full width). This value is needed when changing cut width on Harvesting Information Pages 1 of 4.

When desired box is highlighted, press confirm switch (F).

Rotate selection dial until desired value is shown in box and press confirm switch to save values.

Recording Stop Height

Rotate selection dial until record stop height enter icon (G) is highlighted.

Raise or lower header to desired record stop height and press confirm switch to save value.

Raise or lower header to desired record stop height and press confirm switch to save value.

NOTE: Recording automatically turns OFF at and above preset height and turns ON below preset height, provided all other conditions are met (separator/header engaged, engine at high idle, farm/field is setup), see Manual Recording ON/OFF in this section for information on temporarily overriding.

If Header Height Sensing or Active Header Float are active, record stop height setting is irrelevant and recording will turn ON, provided all other conditions are met (separator/header engaged, engine at high idle, farm/field is setup).

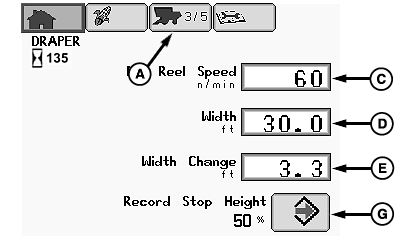

Draper/Platform/Belt Pickup Settings

H87095-UN-10JAN07

H87092-UN-15DEC06

A - Setup Pages Icon

B - Selection Dial

C - Minimum Reel or Belt Pickup Speed Box

D - Width Box

E - Width Change Box

F - Confirm Switch

G - Record Stop Height Enter Icon

From setup pages icon (A), rotate selection dial (B) until one of the following is highlighted:

• Minimum Reel or Belt Pickup Speed Box (C) - allows operator to set minimum reel or belt pickup speed.
• Width Box (D) - allows operator to set cut width on platforms.
• Width Change Box (E) - allows operator to set cut width changes (not harvesting full width). This value is needed when changing cut width on Harvesting Information Pages 1 of 4.

When desired box is highlighted, press confirm switch (F).

Rotate selection dial until desired value is shown in box and press confirm switch to save values.

Recording Stop Height

Rotate selection dial until record stop height enter icon (G) is highlighted.

Raise or lower header to desired record stop height and press confirm switch to save value.

NOTE: Recording automatically turns OFF at and above preset height and turns ON below preset height, provided all other conditions are met (separator/header engaged, engine at high idle, farm/field is setup), see Manual Recording ON/OFF in this section for information on temporarily overriding.

If Header Height Sensing or Active Header Float are active, record stop height setting is irrelevant and recording will turn ON, provided all other conditions are met (separator/header engaged, engine at high idle, farm/field is setup).
