Change Moisture Settings and Yield Units

NOTE: Page appears if equipped with moisture sensor.

Moisture Sensor Settings

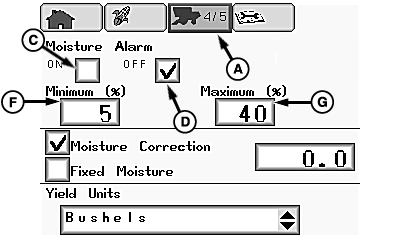

H87096-UN-23APR07

H86934-UN-20NOV06

A - Setup Pages Icon

B - Selection Dial

C - ON Box

D - OFF Box

E - Confirm Switch

F - Minimum Box

G - Maximum Box

• Moisture Alarm ON Box - When checked, moisture alarm will sound when value drops below minimum setting (operator preset) and above maximum setting (determined by operator).
• Moisture Alarm OFF Box - When OFF is checked, moisture alarm will not sound when value drops below minimum setting (operator preset) and above maximum setting (determined by operator).

When desired box is highlighted, press confirm switch (E).

Rotate selection dial until minimum box (F) or maximum box (G) is highlighted:

NOTE: This is used to determine set points (minimum and maximum) for activation of moisture alarm.

• Minimum Moisture Alarm Box - Operator selects a moisture percentage for alarm to sound when value drops below preset value.
• Maximum Moisture Alarm Box - Operator selects a moisture percentage for alarm to sound when value is above preset value.

When desired box is highlighted, press confirm switch.

Rotate selection dial until desired value is shown in box. Press confirm switch to save values.

H87194-UN-11JAN07

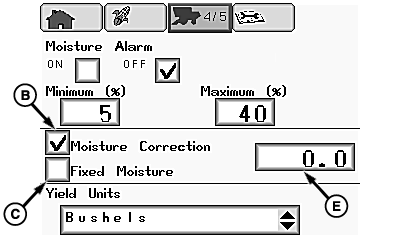

H87212-UN-23APR07

A - Selection Dial

B - Moisture Correction Box

C - Fixed Moisture Box

D - Confirm Switch

E - Value/Change Box

Rotate selection dial (A) until moisture correction box (B) or fixed moisture box (C) is highlighted:

IMPORTANT: Changing moisture correction will not change data already saved. After changes are made, all harvest information collected from that point will reflect the changes.

• Moisture Correction Box - Set moisture correction to match readings from a customer or elevator certified moisture sensor.
• Fixed Moisture Box - Moisture sensor reading will be disabled and forces preset moisture values.

When desired box is highlighted, press confirm switch (D).

Rotate selection dial until value/change box (E) is highlighted and press confirm switch.

Rotate selection dial until desired value is shown in box. Press confirm switch to save value.

Yield Units Settings

H87088-UN-13DEC06

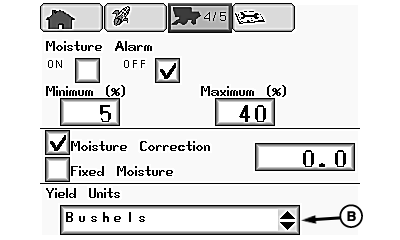

H87097-UN-23APR07

A - Selection Dial

B - Yield Units Menu

C - Confirm Switch

Rotate selection dial to choose desired yield units:

Bushels	Pounds
Barrels	Kilograms
Sacks	Metric Tons
Hundred Weight	Tons

Once desired yield units is chosen, press confirm switch.

NOTE: Operator selects desired global units from regional display settings page for desired area units, refer to Regional Settings, Time/Date Settings, Units of Measurement later in this section.
