Chopper Controller Bar (Optional)

IMPORTANT: When harvesting corn, controller bar must be removed and placed in storage position. Failure to remove controller bar can result in chaffer element damage.

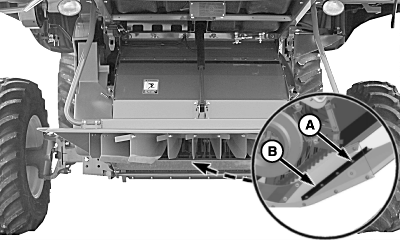

H87246
H87246-UN-22JAN07

A - Cap Screws and Lock Nuts

B - Controller Bar

Controller bar improves cut quality, distribution and spread width in tough straw conditions, see your John Deere dealer for further information.

Remove cap screws and lock nuts (A) from controller bar (B).

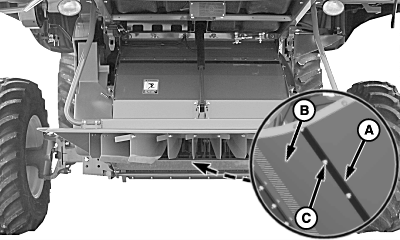

H87247
H87247-UN-22JAN07

A - Controller Bar

B - Bottom Of Chopper Floor

C - Cap Screws and Lock Nuts

Align controller bar (A) on bottom of chopper floor (B). Retain controller bar with previously removed cap screws and locks nuts (C).

OUO6075,0000A69-19-20070404
