Harvest Smart Feed Rate—Best Practices

  • H87103
    H87103-UN-17DEC07

    A - Calibration Button

    Calibrate system using calibration button (A) on VisionTrak display. Operate machine in desired crop at acceptable throughput and loss level for 15-20 seconds ensuring steady operation (allows rotor pressure and loss levels to steady). Calibrating sets the following parameters:
    • Target Volume (Throughput)
    • Target Loss
    • VisionTrak Loss Calibration Factor

  • H86967
    H86967-UN-20NOV06

    H87104
    H87104-UN-14DEC06

    A - Harvest Smart Feed Rate Enable Switch

    Activate system by pressing Harvest Smart Feed Rate Enable switch (A). Choose desired mode:
    • Smart mode - is the recommended method.
    • Capacity mode - if losses are not a concern or VisionTrak is not reliable due to conditions.

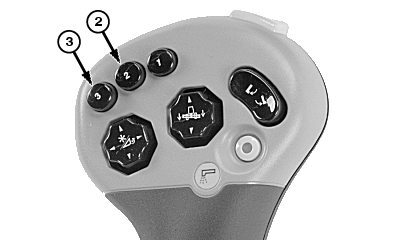

Press activation buttons 2 or 3 on multifunction control handle to activate system and move multifunction control handle forward allowing system to increase speed accordingly to crop density.

NOTE: System will not command a speed greater than handle position.

OUO6075,0000A82-19-20070731
