Spreader Speed Adjust Switch (Black)

NOTE: Spreader speed can be adjusted with separator disengaged. This allows operator to adjust spreader setpoint speed. When separator is engaged, spreader will now operate at the preset speed.

Spreader speed has a range of 0 rpm — 550 rpm. Increase spreader speed until desired spread width is reached.

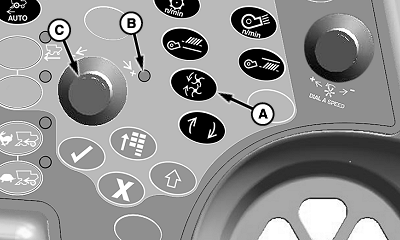

H85882
H85882-UN-31JAN07

A - Spreader Speed Adjust Switch

B - Indicator Light

C - Selection Dial

Spreader speed adjust switch (A) allows operator to adjust speed of both spreader discs from inside cab as determined by operator.

  1. Press spreader speed adjust switch.

  2. Indicator light (B) will come on indicating setting can be adjusted.

  3. Turn selection dial (C) towards plus (+) symbol to increase spreader speed or towards minus (-) symbol to decrease spreader speed.

  4. CommandCenter display will show operator adjustment setting.

NOTE: When spreader is not being used, set spreader speed to zero.

OUO6075,0000A94-19-20071204
