Tough Crop (Rice) Feed Accelerator—Wing Replacing
CAUTION: Shut OFF engine, set parking brake and remove key.

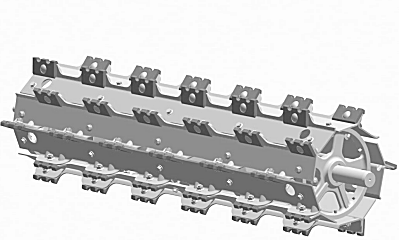

H81772-UN-28SEP04
Feed Accelerator Wing (Rice)

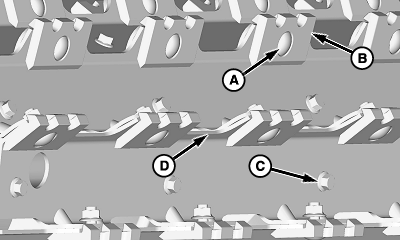

H79440-UN-15DEC03
Feed Accelerator Wing (Rice)
A - Round Head Bolt(s)
B - Feed Accelerator Wear Strip
C - Cap Screws
D - Feed Accelerator Wings
Feed accelerator wings and wear strips can be replaced without removing the feed accelerator. Replace feed accelerator wings in sets of two and opposite of each other to maintain proper balance.NOTE: If accelerator is removed from machine, or has been serviced, tighten clamp bolts before securing wings. Tighten cap screws to specification.
Remove round head bolts (A) and replace feed accelerator wear strips (B) as required. Tighten round head bolts to specification.
| Item | Measurement | Specification |
| Feed Accelerator Wear Strip Round Head Bolts | Torque | 90 N˙m (66 lb-ft) |
Remove cap screws (C) and replace feed accelerator wings (D) as required. Tighten cap screws to specification.
| Item | Measurement | Specification |
| Feed Accelerator Wing Cap Screws | Torque | 70 N˙m (52 lb-ft) |
|
OUO6075,0000AB1-19-20070716 |
