Clean Grain Elevator Conveyor Chain—Adjusting

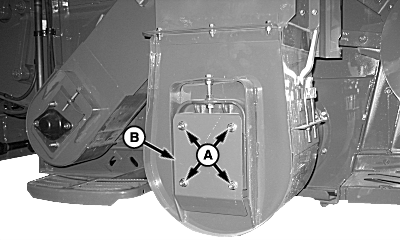

H87581
H87581-UN-07MAR07

A - Nuts (4 Used)

B - Plate

Release latch and open lower door.

Remove nuts (A) and plate (B).

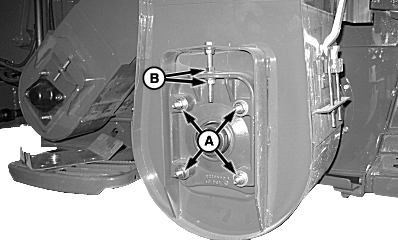

H87582
H87582-UN-07MAR07

A - Nuts (4 Used)

B - Nuts

Loosen nuts (A) and use nuts (B) to adjust chain. Move bearing carrier downward to tighten chain.

Elevator chain is adjusted properly when lower end of chain can be slid side-to-side on sprocket but cannot be pulled away from sprocket. When chain loosens up to 6 mm (1/4 in.) from sprocket, readjust chain. After a period of use, it may be necessary to remove a half link to adjust chain correctly.
