Wide Spread Straw Spreader (Optional)

CAUTION: Do not let anyone stand behind spreader while it is running. Shut OFF engine, set parking brake and remove key before adjusting spreader.

NOTE: To provide optimal material distribution, shrouds should be removed when harvesting with headers smaller than 9.2 m (30 ft.) or corn heads smaller than 12 rows.

H87757
H87757-UN-27MAR07

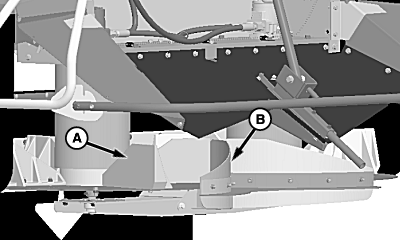

A - Blades

B - Shrouds

When wide spread straw spreader blades (A) and shrouds (B) are installed, it increases spread width and provides better material distribution for headers larger than 9.2 m (30 ft.). See your John Deere dealer for further information.

OUO6075,0000B5E-19-20070423
