Work Lights
CAUTION: To avoid motorist confusion, do not operate work lights
when transporting on public roadways.
NOTE: CommandCenter display will show a warning indicator if rear discharge or stubble lights are left ON while transporting.
H86306-UN-07JUL06
H75102-UN-10FEB03
H83717-UN-10JUN05

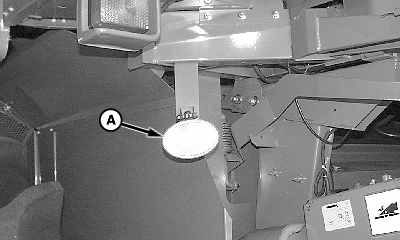

A - Stubble Lights

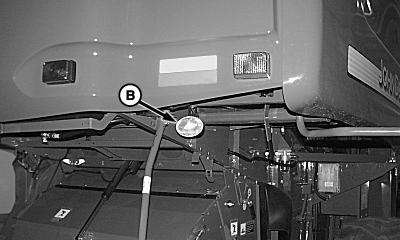

B - Rear Residue Lights

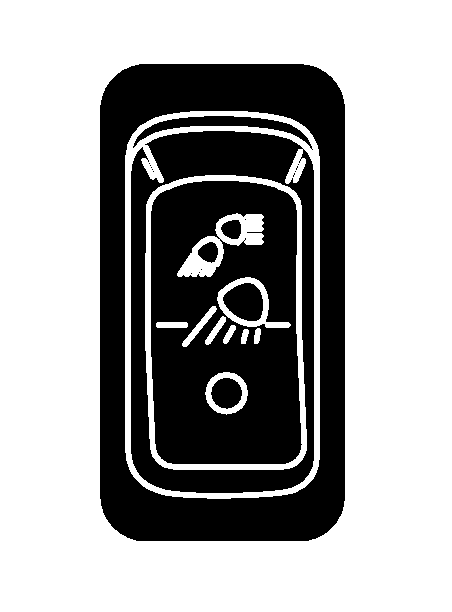

Work light switch controls the stubble lights (A) and rear discharge lights (B).Stubble lights provide the operator with area lighting behind the header for night operation and low light conditions. Rear discharge lights provide the operator with rear area lighting for night operation and low light conditions.
Work light switch is a three position switch.
|
OUO6075,0000B64-19-20070403 |
