Harvesting Information Pages

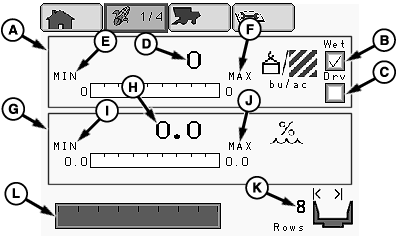

H86247-UN-21AUG07

H86248-UN-22AUG07

Page 1 of 4

Harvesting Information:

• Yield (A)
  • Wet (B)
  • Dry (C)
  • Instantaneous (Recording ON) (D)
  • Average (Recording OFF) (D)
  • Min (E)
  • Max (F)
• Moisture (G)
  • Instantaneous (Recording ON) (H)
  • Average (Recording OFF) (H)
  • Min (I)
  • Max (J)
• Cut Width¹ (K)
  • Increase/Decrease (L)

Page 2 of 4

Performance/Productivity:

• Fuel Consumption
  • Instantaneous Totals (gal/ac, l/ha, gal/hr and l/ac) (M)
  • Average Totals (gal/hr or l/hr) (N)
• Distance Counter (O) and Area Counter (P)
  • Generic counter (operator reset preference (i.e. load, etc.))
  • Clear Icon (Q)
• Productivity (Instantaneous—Recording ON) (Average—Recording OFF)
  • Area per Hour (R)
  • Volume or Weight per Hour (S)
• Weight Counter (T) and Moisture Counter (U)
  • Generic counter (operator reset preference (i.e. load, etc.))
  • Clear Icon (Q)

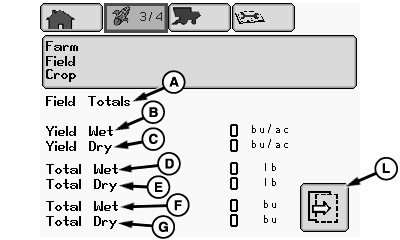

H86249-UN-21AUG07

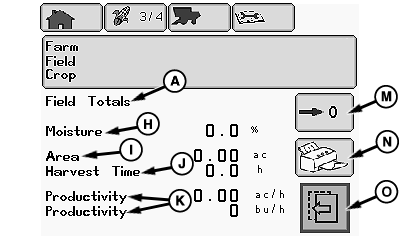

H86250-UN-21AUG07

Page 3 of 4

NOTE: The following will appear on GreenStar display (if equipped) instead of on CommandCenter.

If machine is not equipped with moisture sensor, only the following Field Totals information will appear:

• Area
• Harvest Time
• Productivity

• Field Totals (A):
  • Yield Wet (B)
  • Yield Dry (C)
  • Total Wet (Weight lb or kg) (D)
  • Total Dry (Weight lb or kg) (E)
  • Total Wet (Yield Units) (F)
  • Total Dry (Yield Units) (G)
  • Moisture (H)
  • Area (I)
  • Harvest Time (J)
  • Productivity (K)
• Items to select
  • Next Page (L)
  • Clear Totals (M)
  • Printer (Export Only) (N)
  • Previous Page (O)

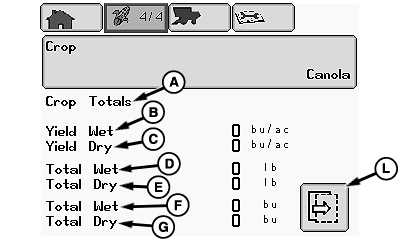

H86333-UN-21AUG07

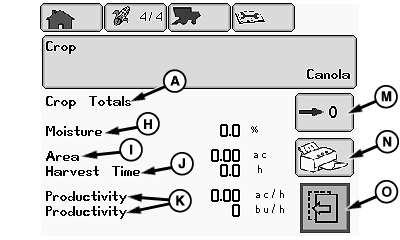

H86332-UN-21AUG07

Page 4 of 4

NOTE: The following will appear on GreenStar display (if equipped) instead of on CommandCenter.

If machine is not equipped with moisture sensor, only the following Field Totals information will appear:

• Area
• Harvest Time
• Productivity

• Crop Totals (A):
  • Yield Wet (B)
  • Yield Dry (C)
  • Total Wet (Weight lb or kg) (D)
  • Total Dry (Weight lb or kg) (E)
  • Total Wet (Yield Units) (F)
  • Total Dry (Yield Units) (G)
  • Moisture (H)
  • Area (I)
  • Harvest Time (J)
  • Productivity (K)
• Items to select
  • Next Page (L)
  • Clear Totals (M)
  • Printer (Export Only) (N)
  • Previous Page (O)
