System Wakeup Power Fuse
H88133-UN-03MAY07
A - 5 Amp. Fuse (F62)

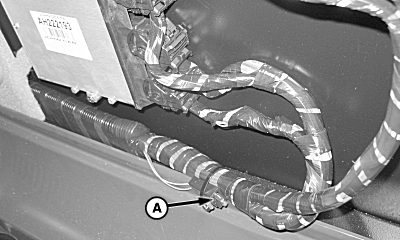

Fuse (A) is located behind the operator's seat along the rear wall. Wakeup power is used to turn on control units when key switch is ”RUN” position. It keeps electrical power connected to the controllers after key switch is turned OFF. This also controls exit lighting and allow controllers to save operating information into memory.|
