Concave Sector Gear Shear Bolts
CAUTION: Shut OFF engine, set parking brake and remove key.

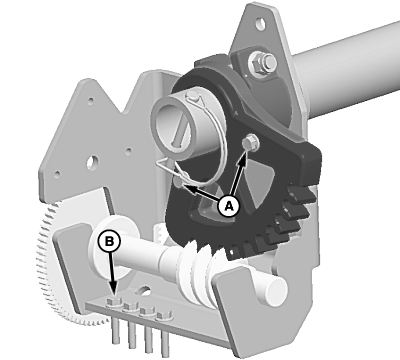

H88917-UN-14JUN07
A - Shear Bolts
B - Extra Shear Bolts (4 Used)
Use only John Deere supplied shear bolts (A), see your John Deere dealer for replacement shear bolts.If shear bolts should break, replace with extra shear bolts (B), which are provided on sector gear bracket.
Tighten shear bolts to specification.
| Item | Measurement | Specification |
| Shear Bolts | Torque | 15 N·m (133 lb-in.) |
|
