Rotor Discharge Paddles (Attachment)

H88923
H88923-UN-14JUN07

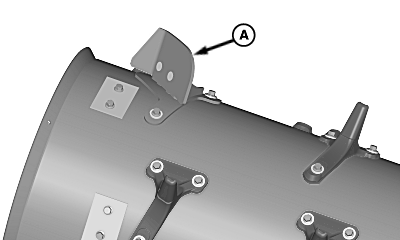

A - Rotor Discharge Paddle

If harvesting in tough material handling conditions or at low rotor speeds, a rotor discharge paddle (A) kit is available as a field installed bundle from your John Deere dealer.

Rotor discharge paddles directly mount to tine positions 21 and 22 and assist in moving material from the rotor through the discharge housing area.

OUO6075,0000BED-19-20070614
