Cleaning Fan Actuator—Adjusting
CAUTION: Shut OFF engine, set parking brake and remove key.
NOTE: Cleaning fan minimum/maximum speed is controlled electronically, instead of using stop nuts to set operating speeds.

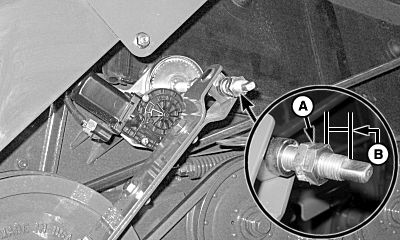

H89228-UN-11JUL07
A - Nuts
B - Distance
Verify nuts (A) are jammed together and set to distance (B).
| Item | Measurement | Specification |
| Nut to End of Threads | Distance | 13 mm (1/2 in.) |
|
OUO6075,0000BFD-19-20070712 |
